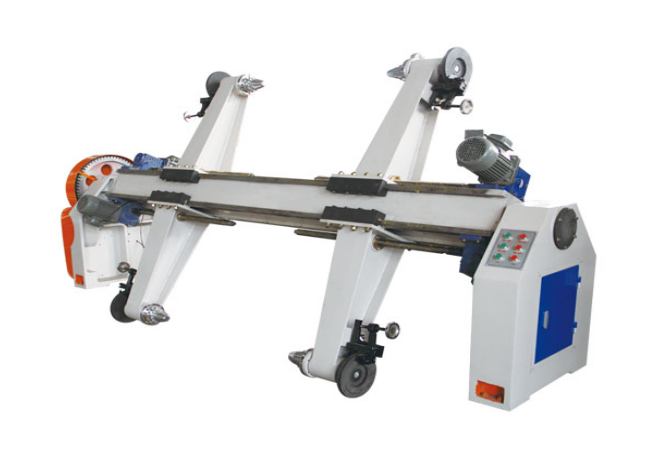

Shaftless Mill Roll Stand

Structural features：

• Symmetrical structure can also install two bundles of paper at the same time，Paper can be used for non-stop for a job；Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.
• Manual disc brake, the lower limit screw, gear clamp head.
• The main frame is 14 channel steel welded with 20mm cold drawn round steel, and the length of ground rail is 6000mm.
• Each paper rack is equipped with two paper carts that can be served simultaneously from both sides.

Technical parameter：

• Paper clip range maximum : 1600mm minimum : 600mm
• Folder diameter maximum : 1400mm minimum : 400mm
• Maximum load on one side: 2000kg
• Parameters of power motor：
• ① Paper clamping motor 550W × 4       ② lifting motors 1.5KW
