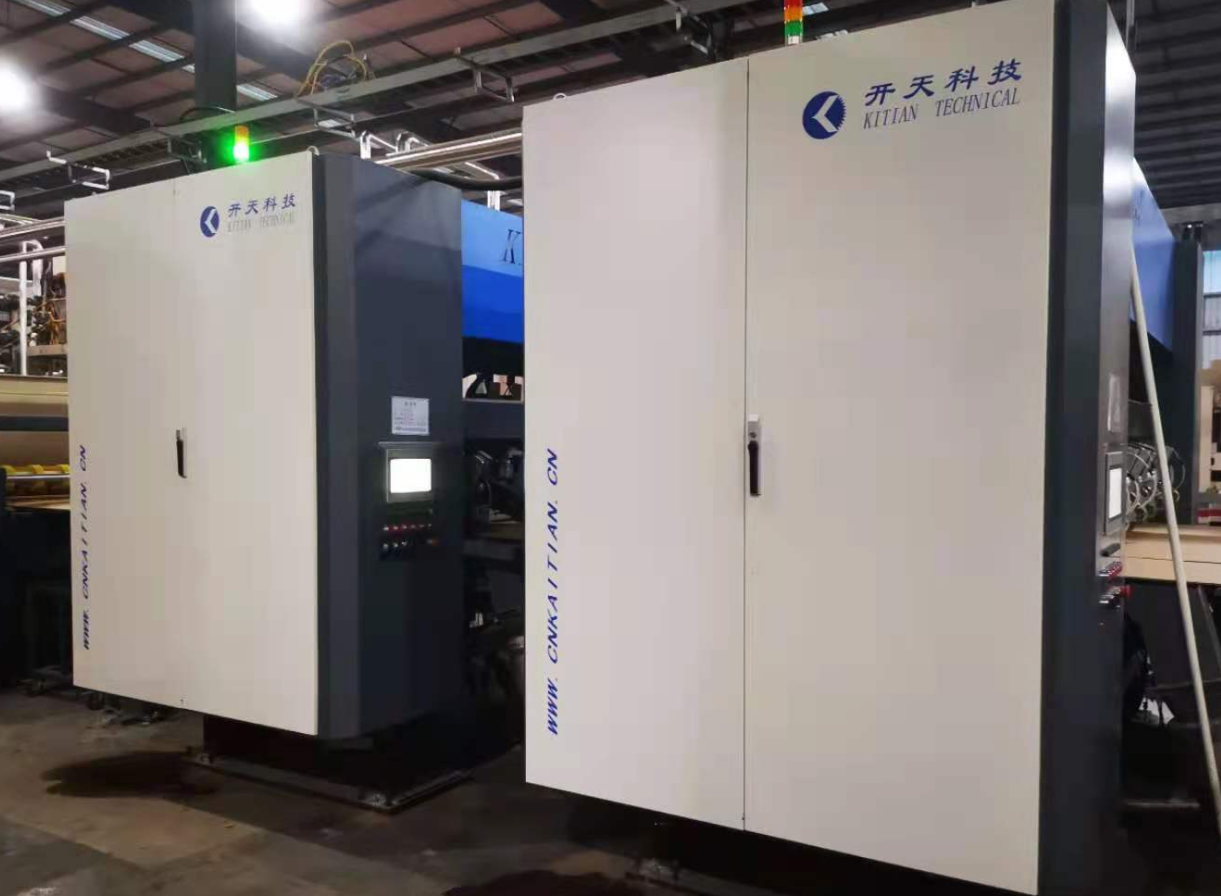

NC Slitter Scorer 1800- 5 Slitter & 8 Scorer

Characters & Configuration:

• Model: SSS18508
• Power consumption: 15KW
• Power supply: 380VAC, 3phase, 50Hz
• Width: 1800mm
• 5 slitter + 8 scorer
• Max mechanical speed: 200m/min
• Min slitter interval: 160mm
• Min scorer interval: 35mm for case height, 75mm for case cover
• Slitting accuracy: +/-1mm
• Slitter material: super hardened alloy
• Slitter lubrication: oil in pulverization
• Scorer shape: (1) Convex to Concave; (2) Convex to plain surface, Use a whole roller to prove the plain surface, has the advantage to keep good condition for the bottom surface, ensure the good print effect even for full size print
• Slitter and scorer positioning time: about 10s
• Independent ball screw for each slitter or scorer unit, servo driven
• Left & right movement: 200mm total
• Order storage: 100,000 orders
• Has production management system interface
