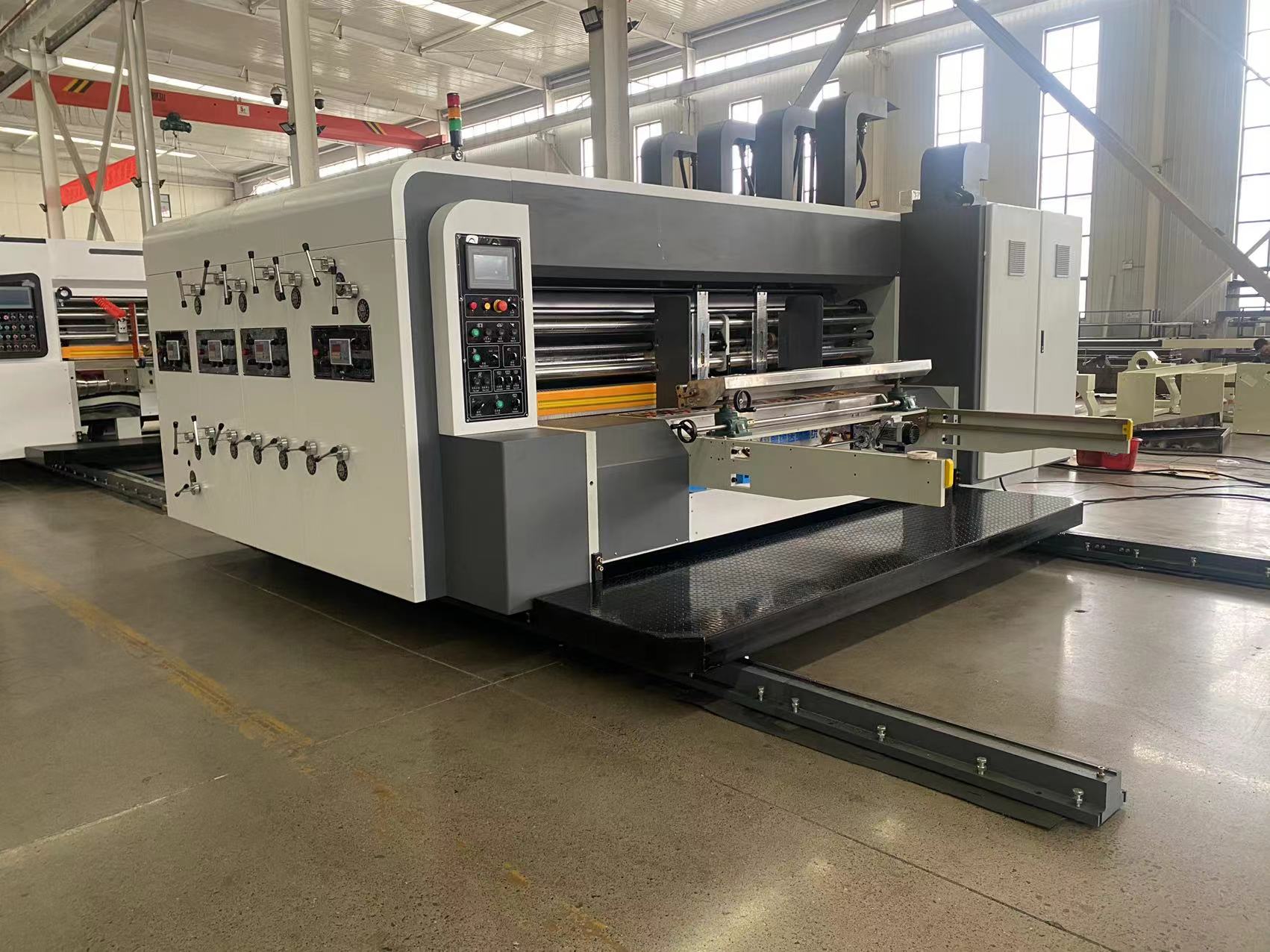

Automatic Flexo Four Color Printing Slotting Rotary Die Cutting With Vibrating Stacker Machine

Name: Automatic Flexo Four Color Printing Slotting Rotary Die Cutting With Vibrating Stacker Machine
SKU: 2178
Price: 1.00 EGP
Availability: InStock

المنتجات products Cardboard Production Machines Automatic Flexo Four Color Printing Slotting Rotary Die Cutting With Vibrating Stacker Machine

Automatic Flexo Four Color Printing Slotting Rotary Die Cutting With Vibrating Stacker Machine

1,00 EGP

Machine introduce

1, Operation-control switch(PLC computer control)

2, it’s control ink roller automatic up and down, printing plate after wash clean, automatic Memory reset, Personalized alignment cardboard , quota to complete automatic standby , and other functions .

The main transmission adopts high quality steel, after quenching treatment, finish rolling gear processing, can achieve the four level of accuracy of high hardness, high precision gear.
Key free space connector, eliminate traditional connection, maintain long-term accurate color printing, the transmission mechanism adopts spray lubrication, automatic lubrication system.
Between the units using cylinder lock, and the whole machine has a strong lock to the self – locking mechanism to ensure the stability of the unit.

-Technical Parameters：

NO	Parameter name	Unit	Specifications
1	Machine inside width	mm	2400
2	Max design speed	pcs/min	160
3	Economic working speed	pcs/min	0~140
4	Maximum paper feeding size	mm	920×2100
5	Minimum paper feeding size	mm	260×500
6	Max printing size	mm	920×2100
7	Interval one paperboard feeder size	mm	1200×2100
8	Color accuracy	mm	+0.5
9	Standard plate thickness	mm	7.2
10	Thickness of the board	mm	2–11
11	Maximum die cutting size	mm	920×2100

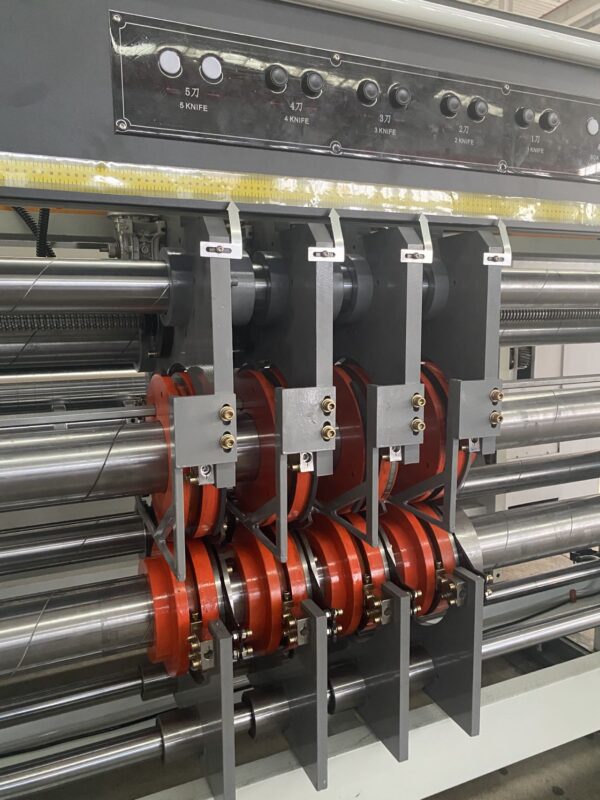

12	Mini. Slotting distance	mm	Negative knife: 260×80×260×80mm Positive knife:160×160×160×160mm
