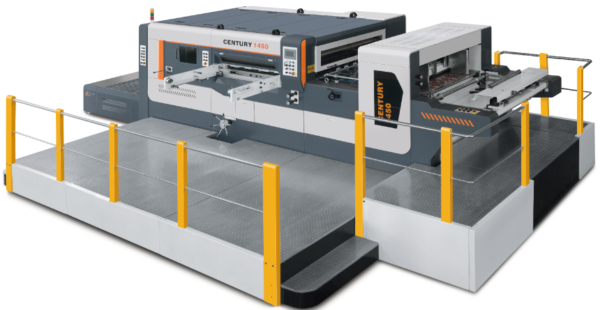

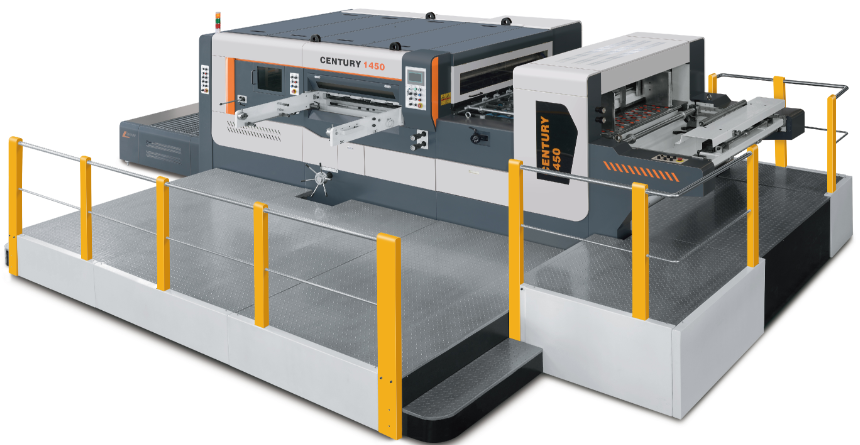

Automatic Carton Breaker

This model was developed according to our customer requirement for reduce labor and continuous productivity. The machine can deal with corrugated board up to 8.5mm at a maximum speed of 4,800 sph.

Features of this model also include the following:

• Maximum sheet size: 1330*980mm
• Minimum sheet size: 550*480mm

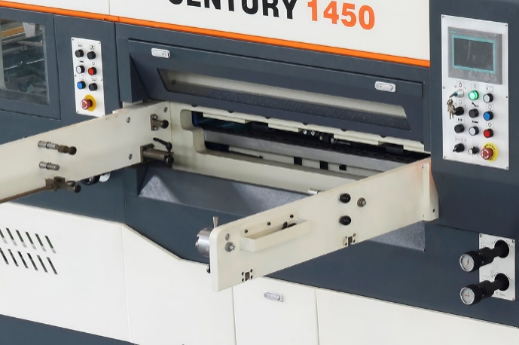

• Pneumatic lock-up system and Centerline system for quick stripping die and cutting die set up and job changeover

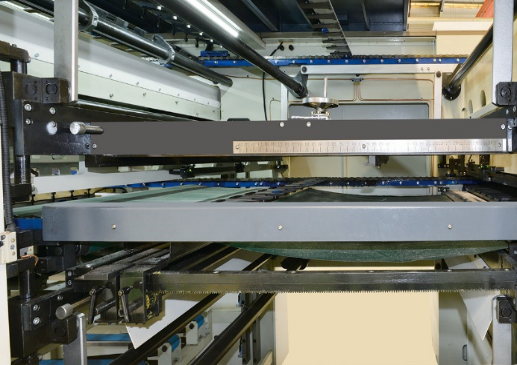

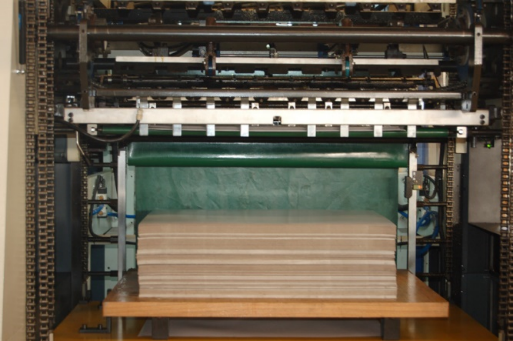

• Non-stop delivery system for continuous productivity.
• Front waste separator for complete stripping for a higher productivity.
• Human machine interface for east operation and malfunction diagnosis.

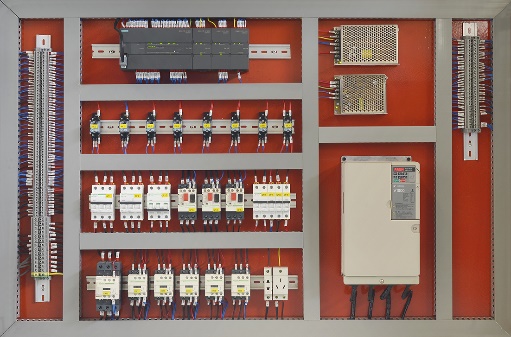

• Siemens latest PLC technology for machine trouble free running.

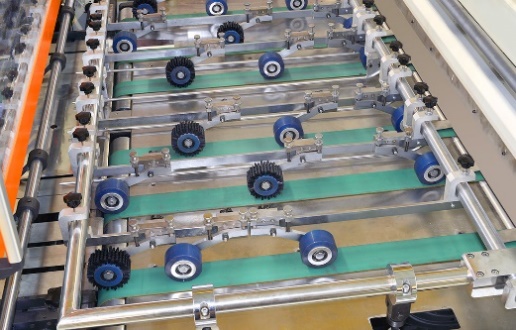

• High precision lead edge feeder for precise paper feeding
• Photo-electrical device for safe operation.
• European, Taiwanese and Japanese standard spare parts.
• ISO9001:2008 and CE approved manufacturing process.
• Electrical auto-lifter device equipped for packages orders that don’t need stripping function.

-Technical Parameters：
