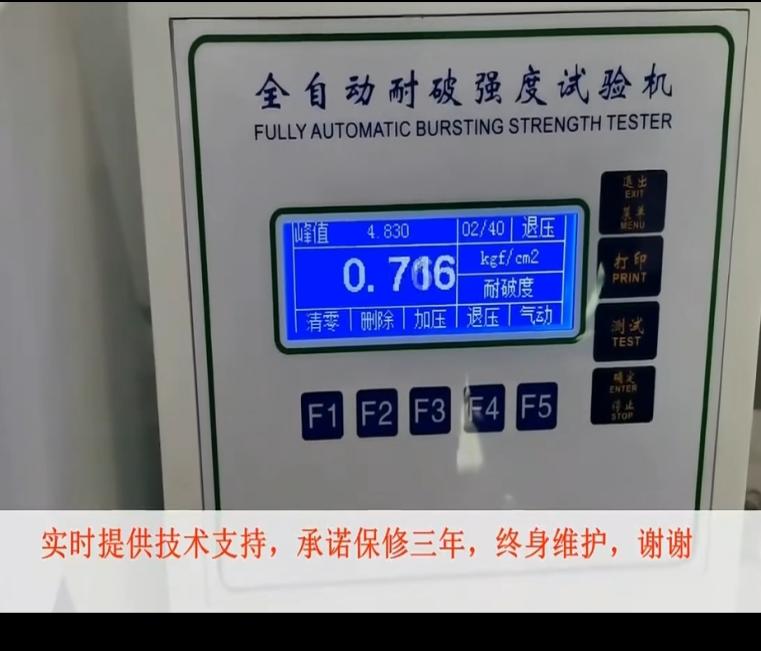

Automatic Bursting Tester

Product Parameters:

Savings results: With the printing function, 10 sets of data can automatically calculate the average

Display mode: high-definition LCD display, digital A/D input rate 100 / S

Power unit: kgf / cm2, Lb / in2, Kpa (with unit switching function)

Measuring range: 250~6000kPa

Resolution: 1kPaCping:> 690Kpa (adjustable)

Measurement accuracy: better than ± 1%FS and better than 1% of soil

Oil pressure speed: high pressure type 170 ± 10ml/min

Film film resistance: convex 10mm,170kPa~220kPa convex 18mm,250kPa~350kPa

Inner diameter of upper clip ring hole: φ (31.5 ± 0.05) mm

Inner diameter of lower clip ring hole: φ(31.5 ± 0.05) mm

Upper clamp diameter: 95mmLower clamlet diameter: 135mm

Hydraulic oil: Silicon oil

Volume: 430 * 530 * 520mm

Power supply 1, AC220V

Standard configuration: 5 rubber film sheets, 1 wrench sheet, 10 correction sheets, and 1 bottle of silicone oil
